DC ADGCPT

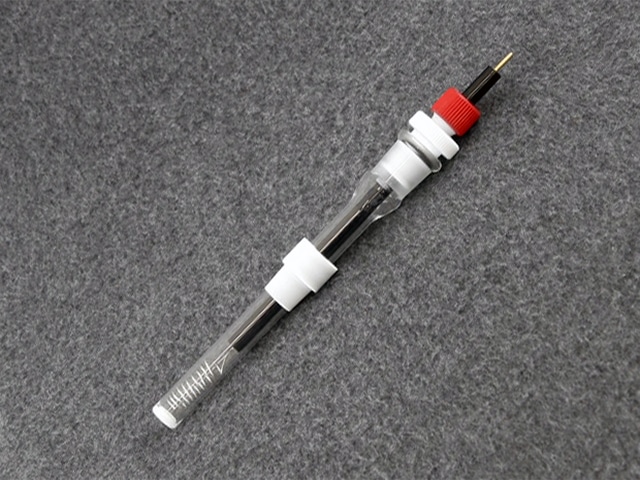

Rotating Ring-Disk Electrode Tip((RRDE)

Model：DC ADGCPT

Origin：China

Manufacturer：Wuhan DC New Energies Co ., Ltd

Disk material: Glassy Carbon, OD5.61mm ±0.05mm

Disk type:Fixed

Ring material:Platinum (Pt)

Ring outer diameter:7.92 mm ±0.05mm

Ring inner diameter:6.25 mm ±0.05mm

Shround material: PTFE, OD15mm,+/-0.1mm

Tip length (overall):49mm(+/-1mm)

Tip maximum rotation rate: 3000 RPM

Thermal stability range: Room temperature
