Ring electrode

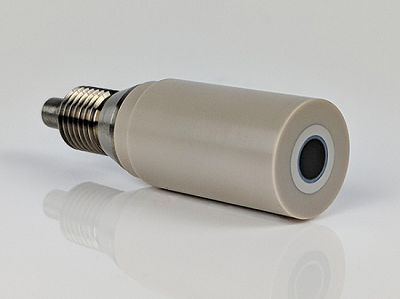

E6R1 interchangeable disk ring electrode
Model: E6R1 convertible disk
Brand: PINE
Origin: USA
Product parameter
Material: GC, AU, PT, etc
Operating temperature: 10-25℃
Disk electrode diameter: 5 mm
Ring inner diameter: 6.5mm
Ring outer diameter: 7.5mm
Electrode outer diameter: 15mm
Collection rate: 25%
Product introduction
PINE rotary disk electrodes are made of high-quality materials, uniform density, stable chemical properties, and supported by precision machining technology to ensure that each electrode has the same characteristics.
The E6R1 replaceable spiral disk electrode allows the user to insert the disk by himself through the unique U-CUP, which can effectively reduce the cost of use, and can be selected by the user to expand the scope of research.
External thread design, better contact, stable signal transmission.

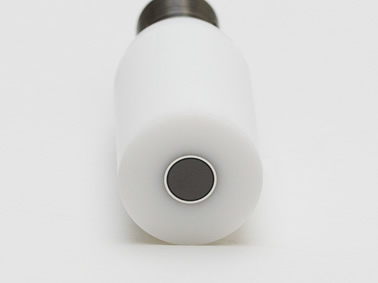

E6R2 Coil electrode (high temperature)
Model: E6R2
Brand: PINE
Origin: USA
Product parameter
Material: GC, AU, PT, etc
Operating temperature: 80℃
Disk electrode diameter: 5.5mm
Ring inner diameter: 6.5mm
Ring outer diameter: 8.5mm
Electrode outer diameter: 15mm
Collection rate: 38%
Product introduction
PINE rotary disk electrodes are made of high-quality materials, uniform density, stable chemical properties, and supported by precision machining technology to ensure that each electrode has the same characteristics.
The E6R2 rotary disk electrode is packaged with PEEK material and can work at high temperature (below 80℃). External thread design, better contact, stable signal transmission.

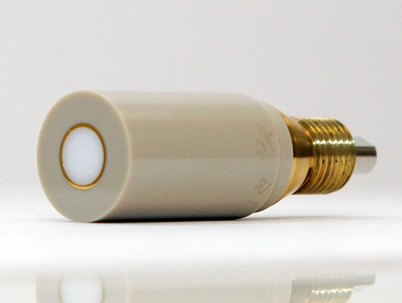

E7R8 disk ring electrode
Model: E7R8
Brand: PINE
Origin: USA
Technical parameter
E7R8
Ring distance: 180μm
Collection rate: 22%
Operating temperature: 10-25℃
Disk area: 0.1639cm2
Ring area: 0.0364cm2
Outer diameter of glass carbon disk electrode: 4.57mm
Platinum ring inner diameter: 4.93mm
Outer diameter of platinum ring: 5.38mm
Plate material: glass carbon, platinum, gold, etc
Ring material: glass carbon, platinum, gold, etc
Product introduction
Rotating disk ring electrode (RRDE) By collecting the current and potential data of the disk ring, in addition to understanding the electrochemical properties of the characterized substances on the disk electrode, it can also collect direct products through the ring for further research.
It can be widely used in the research and evaluation of hydrogen fuel cell catalysts. Lithium-air battery research; Electrochemical kinetics research; Oxygen reduction reaction (ORR) and oxygen precipitation reaction (OER) were studied.
External thread design, better contact, stable signal transmission.

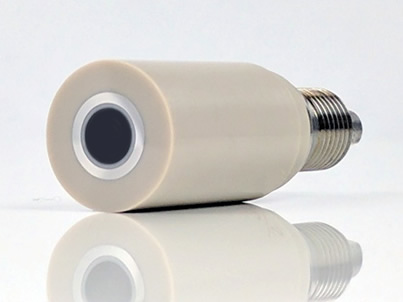

E7R9 disk ring electrode
Model: E7R9
Brand: PINE
Origin: USA
Technical parameter
E7R9
Ring distance: 320μm
Collection rate: 37%
Operating temperature: 10-25℃
Disk area: 0.2475cm2
Ring area: 0.1866cm2
Outer diameter of glass carbon disk electrode: 5.61mm
Platinum ring inner diameter: 6.25mm
Outer diameter of platinum ring: 7.92mm
Plate material: glass carbon, platinum, gold, etc
Ring material: glass carbon, platinum, gold, etc
Product introduction
Rotating disk ring electrode (RRDE) By collecting the current and potential data of the disk ring, in addition to understanding the electrochemical properties of the characterized substances on the disk electrode, it can also collect direct products through the ring for further research.
It can be widely used in the research and evaluation of hydrogen fuel cell catalysts. Lithium-air battery research; Electrochemical kinetics research; Oxygen reduction reaction (ORR) and oxygen precipitation reaction (OER) were studied.
External thread design, better contact, stable signal transmission.
E8 coil electrode
Model: E8
Brand: PINE
Origin: USA
argument
Collection rate: 43.9%
Disk diameter: 5.00mm
Ring inner diameter: 6.00mm
Ring outer diameter: 8.50mm
Disc ring spacing: 500 um
Disk material: glass carbon
Ring material: Platinum
peculiarity
(1) A special layer of PTFE Teflon ring between the disc and the ring is more hydrophobic than PK material, which is conducive to the drop of the sample and is not easy to spill onto the ring;
(2) The collection rate reached 43.9%, which is the highest collection rate of all commercial RRDE electrodes;
(3) Can be used in high temperature environment, up to 80 degrees Celsius in the electrolyte test.
Apply
Rotating disk ring electrode (RRDE) By collecting the current and potential data of the disk ring, in addition to understanding the electrochemical properties of the characterized substances on the disk electrode, it can also collect direct products through the ring for further research. It can be widely used in the research and evaluation of hydrogen fuel cell catalysts. Lithium-air battery research; Electrochemical kinetics research; Oxygen reduction reaction (ORR) and oxygen precipitation reaction (OER) were studied. External thread design, better contact, stable signal transmission.
