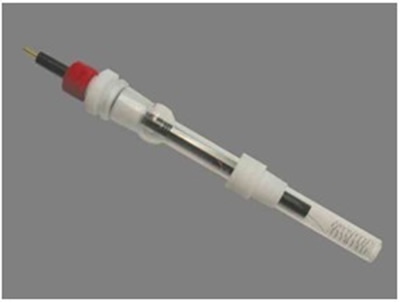

Platinum Counter Electrode
This Standard Platinum Counter Electrodefeatures a coiled platinum wire (99.99% pure) mounted at the end of a chemically-resistantepoxy rod. A fritted glass tube isolates the counter electrode from the maintest solution. The glass tube is equipped with a PTFE adapter suitable formounting the tube in a 14/20 port on our standard electrochemicalcells. Alternatively, the counter electrode may be removed fromthe glass tube and mounted directly in the electrochemical cell.
Ptwire OD = 0.5 mm; approximate surface area = 4.7 cm2
6.9 mmOD x 150 mm epoxy tube shroud
Compatiblewith our standard electrochemical cells
See "Description"tab below for additional precautions and information.
Description
This Standard Platinum Counter Electrodefeatures a coiled platinum wire (99.99% pure)mounted at the end of achemically-resistant epoxy rod. A fritted glass tube isolates the counterelectrode from the main test solution. The glass tube is equipped with aPTFE adapter suitable for mounting the tube in a 14/20 port on our standardelectrochemical cells. Alternatively, the counter electrode may be removedfrom the glass tube and mounted directly in the electrochemical cell. The coilis fabricated from a 0.5mm OD Pt wire that has an approximate surface area of4.7 cm2. The approximate diameter of the coil is 9 mm. The 6.9mm OD black epoxy rod is 150 mm long. The overall length of the rod and thecoil is approximately 180 mm.
Specification
Pt WireOD 0.5 mm
Pt WireApproximate Surface Area 4.7 cm2
Shroud Dimensions 6.9 mm OD x 150 mm long
